we offer all types of surface pump invented by our official partner the Italian company caprari.

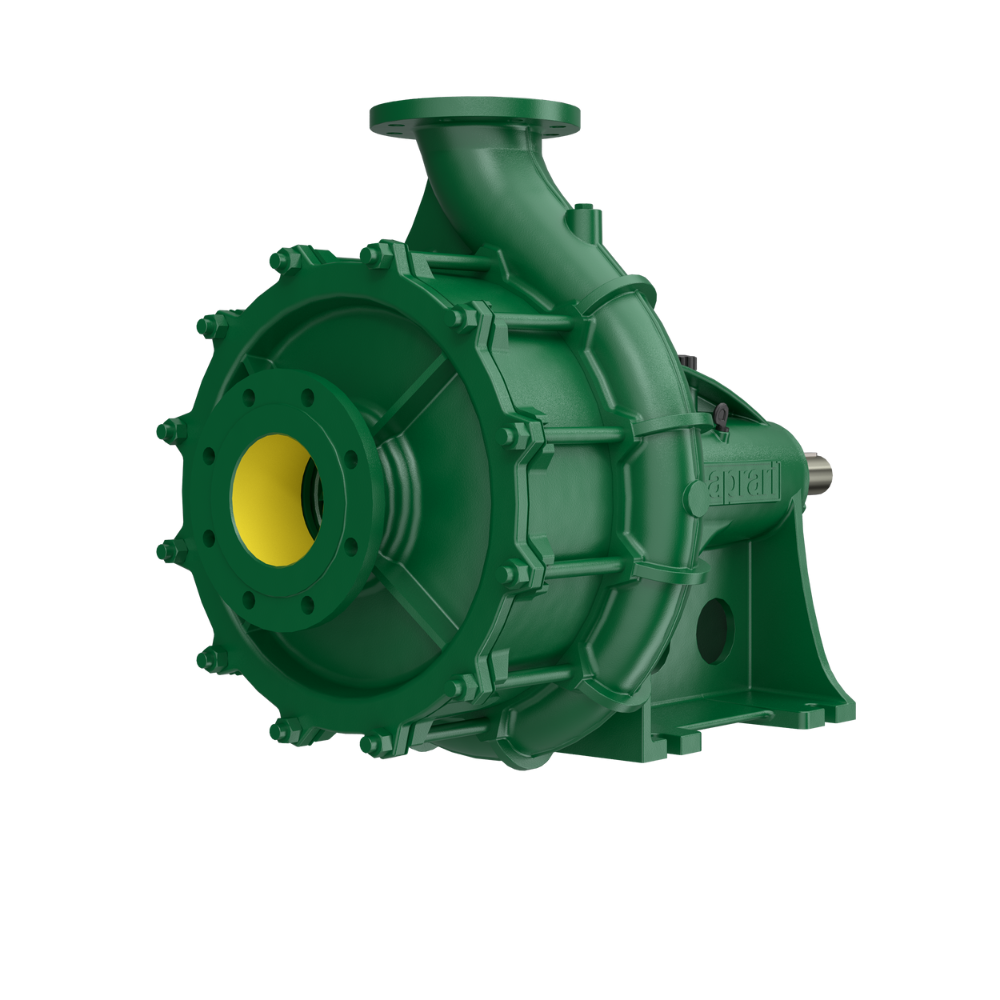

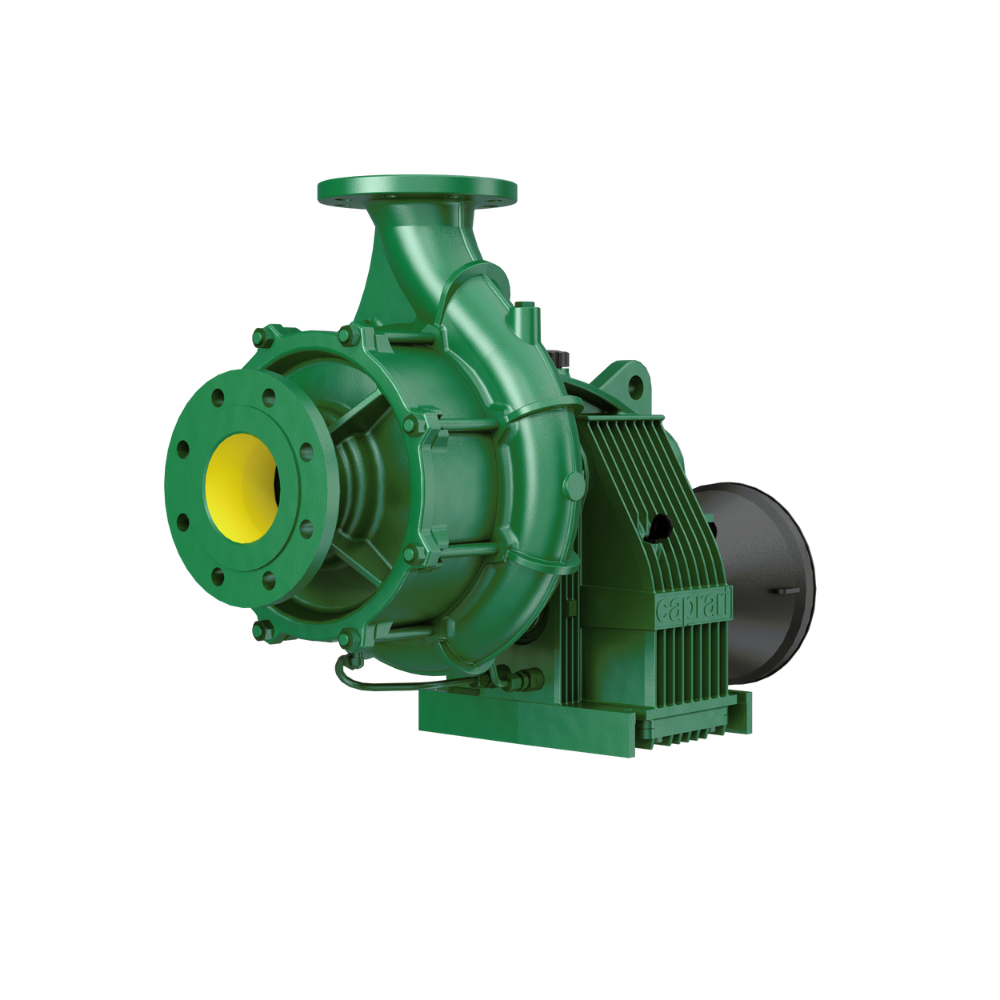

SAE flanged pumps for diesel engines Multistage and single-stage centrifugal horizontal shaft pumps designed for direct-flanged coupling to diesel engines. The new series has a modular structure consisting of a support that allows connection to the motor with flange-flywheel size SAE3-4-5. Ideal for irrigation and water supply, thanks to their very robust structure, they can be used in heavy-duty conditions ensuring durability over time. Flow rate up to 135 l/s Head up to 195 m Power up to 150 kW depliantMEC-irrigazione-10-EN-esec-LR.pdf

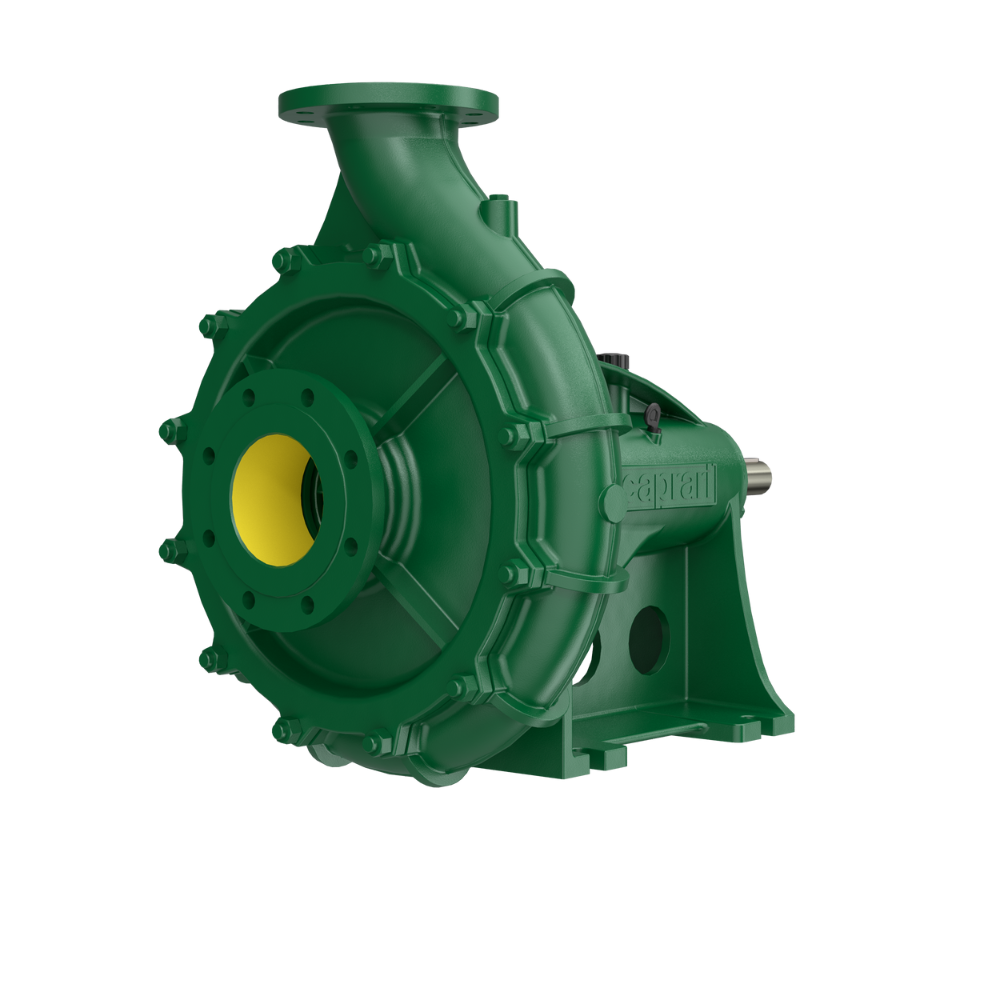

Horizontal single stage pumps Made with cast iron hydraulics and steel shaft. They can be coupled to both diesel engines and electric motors with 2 and 4 poles. Both packing and mechanical seals are available. A particularly versatile pump that is used in water supply, industrial, irrigation and fire-fighting applications. Flow rate up to 130 l/s Head up to 140 m Power up to 132 kW MECA-GBFI-996157A_04-15.pdf

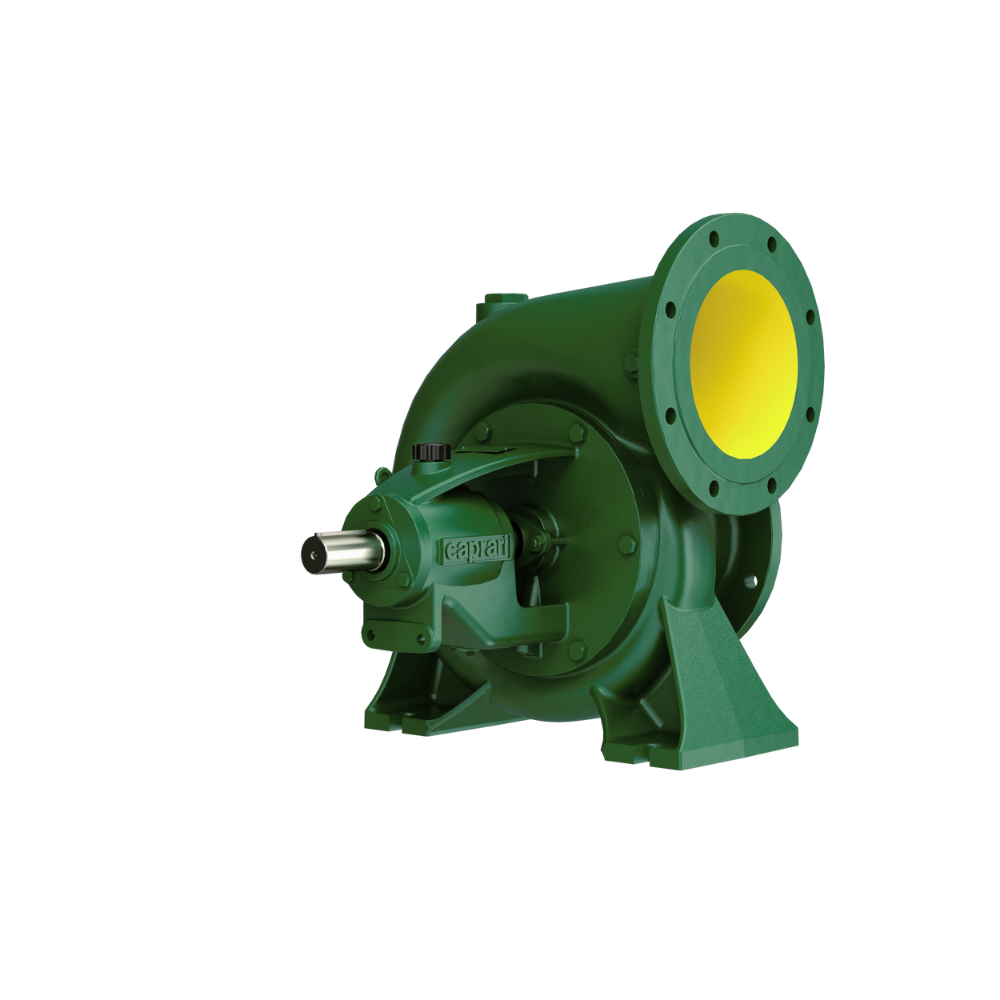

Horizontal single stage pumps Horizontal centrifugal single stage pumps. They can be coupled with both electric motors with 6 and 4 poles and with diesel engines. Pumps that deliver substantial flows find their application in irrigation, fish farming and industry in general. Flow rate up to 280 l/s Head up to 25 m Power up to 37 kW BHR-GBFI-996147B_10-15.pdf

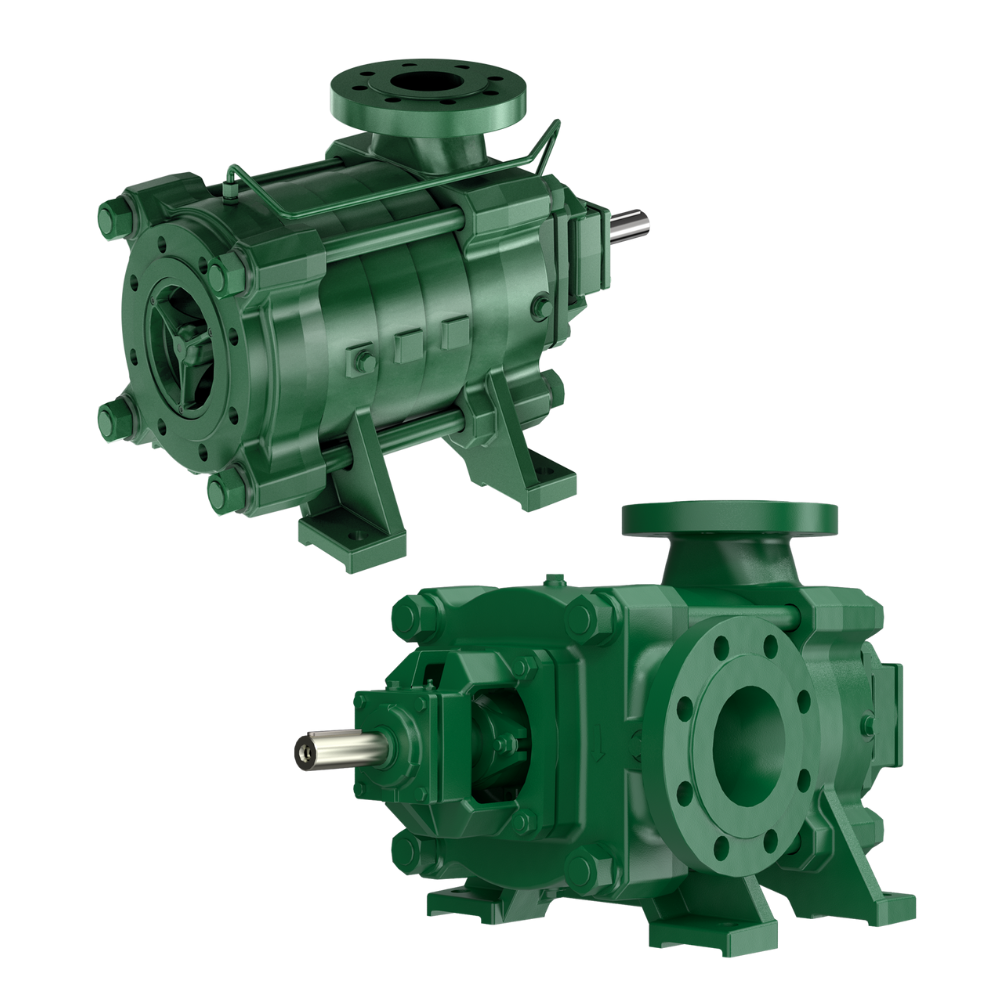

Multistage horizontal pumps for high pressure (up to 100 bar) for industrial applications, water supply, snowmaking, fire fighting and irrigation. Available in versions with adjustable packing or mechanical seal. They ensure high performance and hydraulic efficiency at the top of the market. Version with axial suction is also available. Flow rate up to 160 l/s Head up to 1000 m Power up to 700 kW flyer-PMA-EN_compressed.pdf PM-GBFI-996187F_05-21.pdf

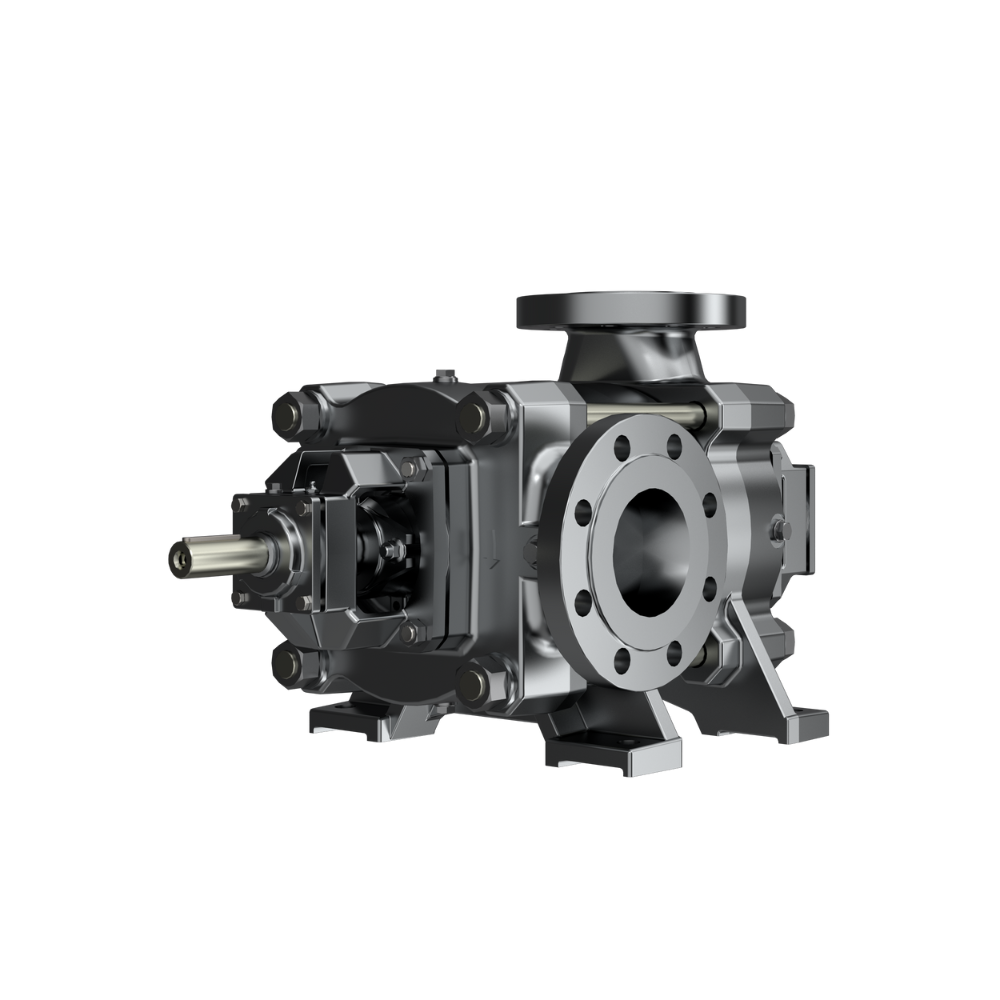

High pressure multistage horizontal pumps in stainless steel Multistage horizontal pumps for high pressure in high precision casted stainless steel. The thickness of the components, choice of high-performing materials and innovative technical solutions make PMXT ENDURANCE pumps unique on the market for performances, robustness and reliability. Pumps are also available in special materials. Ideal for extreme applications and aggressive liquids: desalination plants, seawater, firefighting. Flow rate up to 160 l/s Head up to 1000 m Power up to 700 kW
Horizontal multistage pumps Made with a cast iron hydraulic structure and inox impellers, they ensure consistent performance over time and the most economical energy consumption possible. Available in a wide range, they can be coupled with both electric motors and diesel engines. They can be used in various applications such as water supply, industry, irrigation and fire-fighting. Flow rate up to 26 l/s Head up to 280 m Power up to 55 kW
Multistage horizontal pumps for high pressure (up to 100 bar) for industrial applications, water supply, snowmaking, fire fighting and irrigation. Available in versions with adjustable packing or mechanical seal. They ensure high performance and hydraulic efficiency at the top of the market. Version with axial suction is also available. Flow rate up to 160 l/s Head up to 1000 m Power up to 700 kW

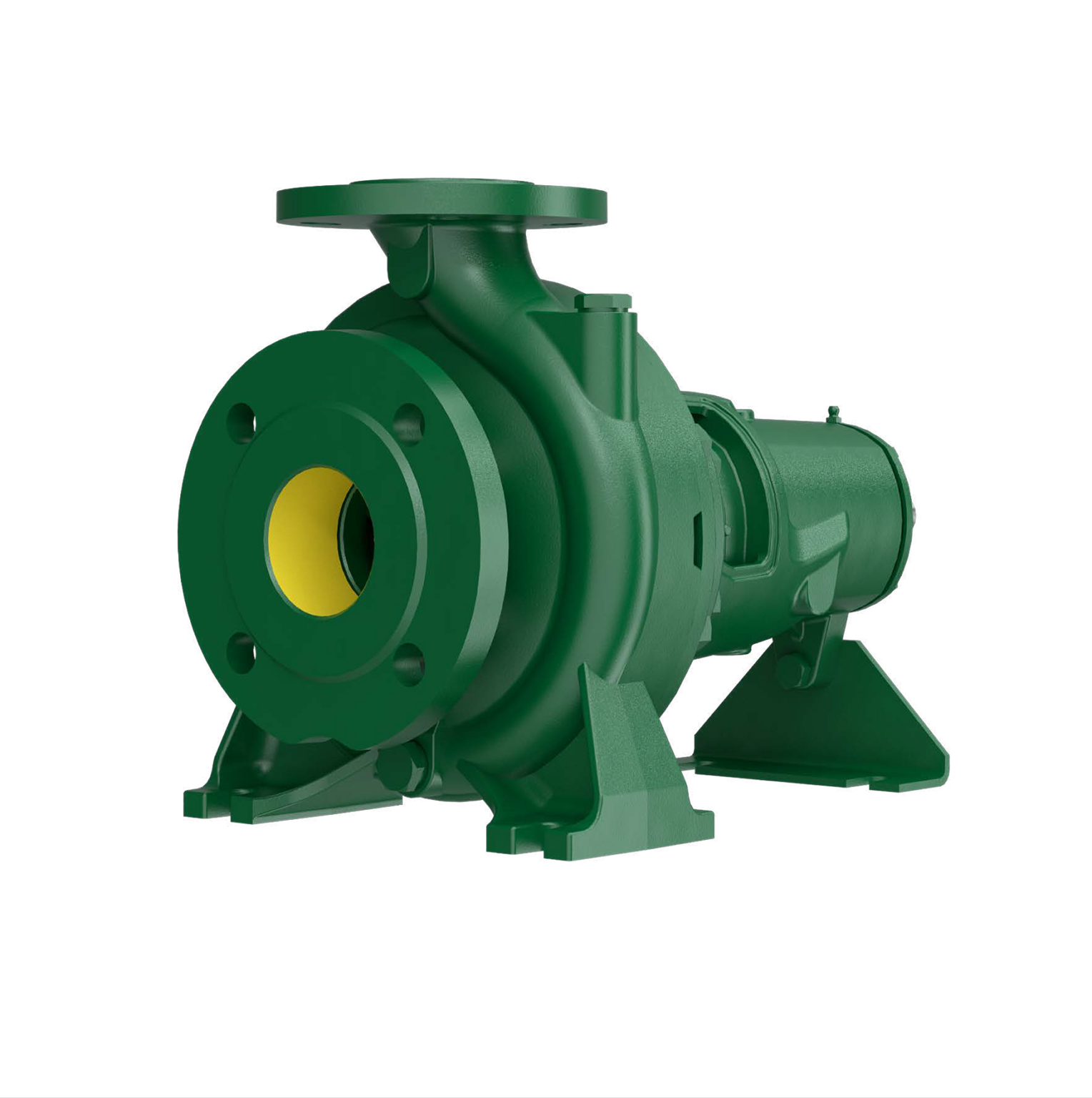

EN733 Normalized pumps Single-stage horizontal centrifugal pumps compliant with DIN 24255/EN 733 standard. Made with back pull-out system, they are used in heating and air-conditioning systems in refrigerator plants, water supply, industry, irrigation and fire-fighting units. Version with mechanical seal and cast iron or stainless steel impeller are available. Flow rate up to 420 l/s Head up to 110 m Power up to 355 kW
EN733 Normalized pumps The new range of single-stage horizontal centrifugal pumps compliant with DIN 24255/EN 733 standard. Made with back pull-out system, they are used in heating and air-conditioning systems in refrigerator plants, water supply, industry, irrigation and fire-fighting units. High temperature execution (up to 140°C) and full bronze. Pumps compliant with 2009/125/EC Directive (EcoDesign – Erp) Flow rate up to 250 l/s Head up to 100 m Power up to 132 kW Frequency 50/60 Hz
Multistage horizontal pumps for high pressure (up to 100 bar) for industrial applications, water supply, snowmaking, fire fighting and irrigation. Available in versions with adjustable packing or mechanical seal. They ensure high performance and hydraulic efficiency at the top of the market. Version with axial suction is also available. Flow rate up to 160 l/s Head up to 1000 m Power up to 700 kW
Split case pumps Split case horizontal pumps. The robust and compact structure guarantee high performances, reduced maintenance and reliability over time. The wide range of pumps guarantees the best solution to the customer’s request. Ideal for aqueducts, civil and industrial water supply, reclamation, irrigation and industry. Flow rate up to 1000 l/s Head up to 200 m Power up to 3000 kW Frequency 50/60 Hz flyer-SCC2-EN_compressed.pdf

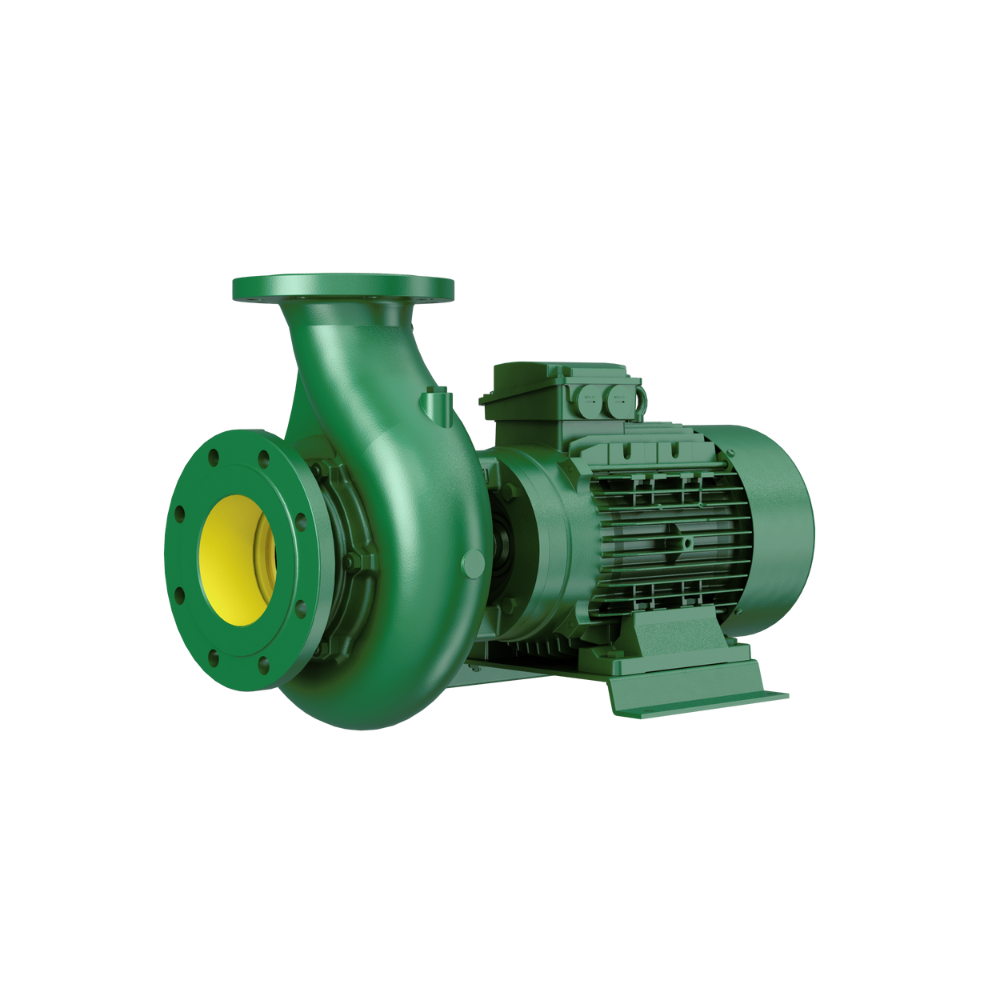

EN733 Normalized monobloc pumps The new range of monobloc electric pumps compliant with DIN 24255/EN 733 standard. Available both with integral shaft or with extended pump shaft and normalized 2 and 4 poles motors. Ideal for heating and air-conditioning systems, industry, civil application, booster sets, irrigation. High temperature execution (up to 140°C) and full bronze. Pumps compliant with 2009/125/EC Directive (EcoDesign – Erp) Flow rate up to 180 l/s Head up to 95 m Power up to 90 kW Frequency 50/60 Hz

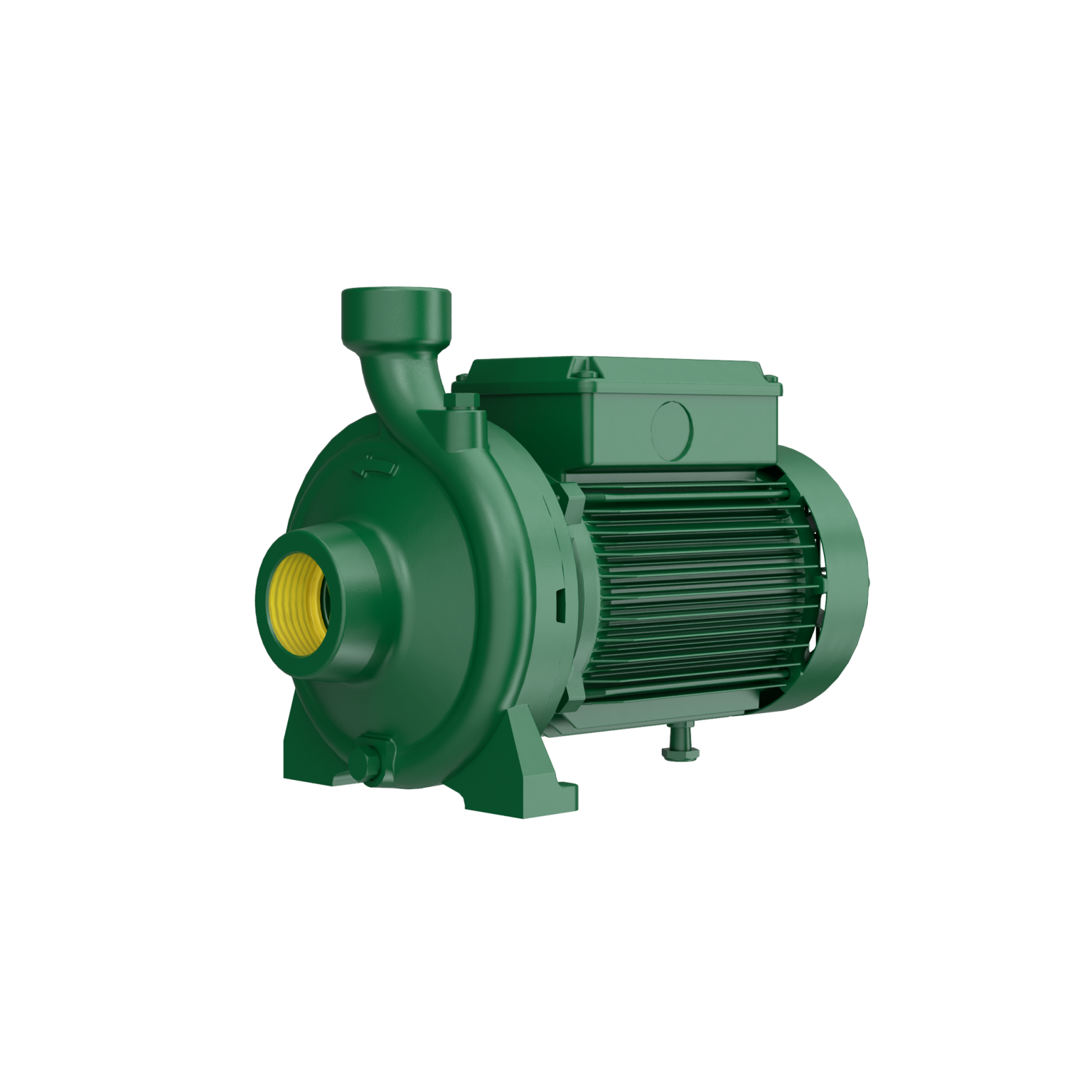

Threaded monobloc pumps NMCF, the range of threaded monobloc electric pumps; electric motor with extended shaft directly connected to the pump. Normalized 2 poles motors. Ideal for heating and air-conditioning systems, industry, civil application, booster sets, irrigation. High temperature execution (up to 90°C) and full bronze. Flow rate up to 18 l/s Head up to 120 m Power up to 4 kW Frequency 50/60 Hz

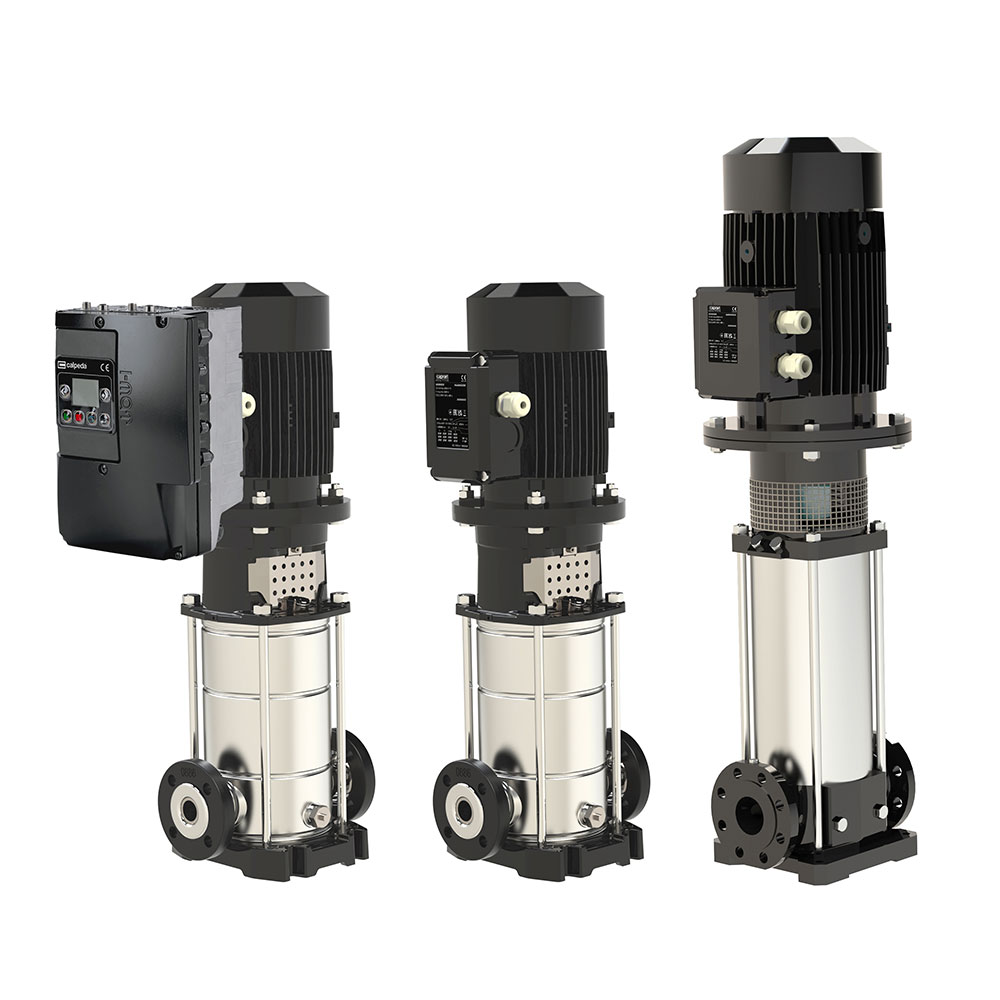

Vertical inline multistage electric pumps The range of CVX series vertical multistage pumps in stainless steel features suction and delivery in line and highly energy efficient motors. The wide range combined with the high quality and reliability are the most evident of the CVX values. Ideal for industry, irrigation, residential, commercial and civil buildings, boosting systems. Flow rate up to l/s 33 Head up to m 313 Power up to kW 45
Vertical inline multistage electric pumps The new range of vertical multistage electric pumps made in Italy certified for use in drinking water. Stainless steel components and IE3 efficiency class motors guarantee robustness and high energy savings. The inline port construction and the replaceable cartridge mechanical seal ensure reduced installation costs and easy maintenance. Flow rate up to 18 l/s Head up to 250 m Power up to 22 kW Frequency 50-60 Hz

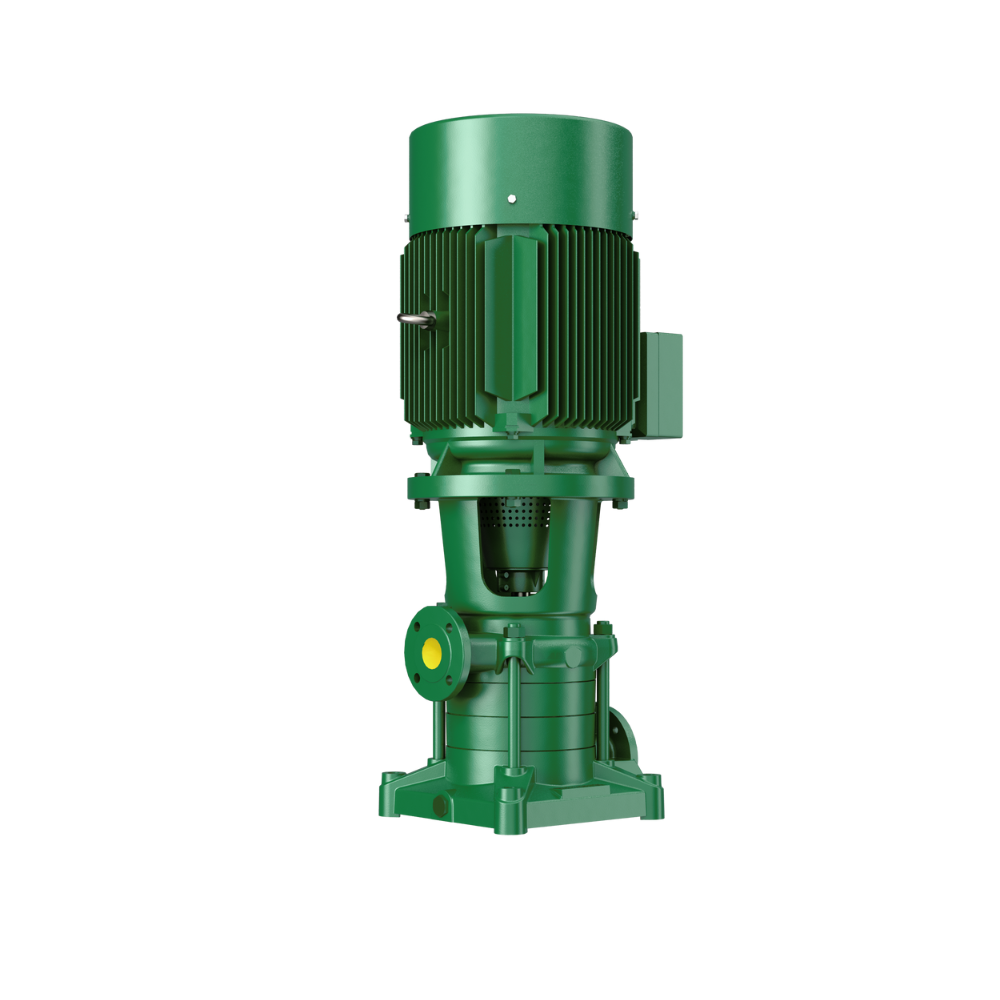

Vertical multistage electric pumps Surface vertical multistage centrifugal pumps. Silent and efficient, they can be used in water supply systems, cleaning, fire-fighting, air-conditioning and cooling systems, in addition to being suitable for irrigation and for booster systems in general. Flow rate up to 50 l/s Head up to 250 m Power up to 90 kW
Horizontal Monobloc electric pumps Monobloc centrifugal electric pumps with horizontal shaft, single stage with adjustable packing or mechanical seal. Made of a sturdy cast iron structure, they are coupled with 2-pole three phase asynchronous electric motors. Ideal for air-conditioning and cooling tower, water circulation, vessel supply, booster and irrigation systems. Flow rate up to 60 l/s Head up to 85 m Power up to 18.5 kW
Trailer mounted tractor pumps Horizontal axial centrifugal pump, volute delivery casing, and one or two impellers in series. Possibility to couple with a wheel mounted pump outfit, a semi-mobile irrigator or the hydraulic lift of a tractor. Consistent performance over time. Ideal for mobile or semi-fixed irrigation systems. Flow rate up to l/s 140 Head up to m 170 Power up to kW 120 MECD-GBFI-996307A_07-14.pdf
